Discover SynOdos

SynOdos is Synelixis innovative solution, extending the capabilities of the integrated precision agriculture system SynField. The synOdos is a wireless peripheral monitoring and control device and needs to be interconnected to a SynField node that acts as a gateway for the synOdos device.

SynOdos:

  • Connects wirelessly. The interconnection between the SynOdos device and the SynField node is based on the LoRa wireless technology
  • Allows  you to set up a network of interconnected devices with SynField nodes that cover the area of large farms wirelessly, efficiently and economically
  • Supports up to two sensors and up to two actuators (valves, relays, remote irrigation etc)
  • Supports a plethora of off-the-self sensors (vendor independent) and actuators (valves, relays)
  • Is an autonomous device with integrated solar panel and large rechargeable battery
  • Is easy to connect with the SynField Cloud application, for real-time data monitoring

LoRa wireless technology

The interconnection between SynField and SynOdos device is based on the LoRa wireless technology.

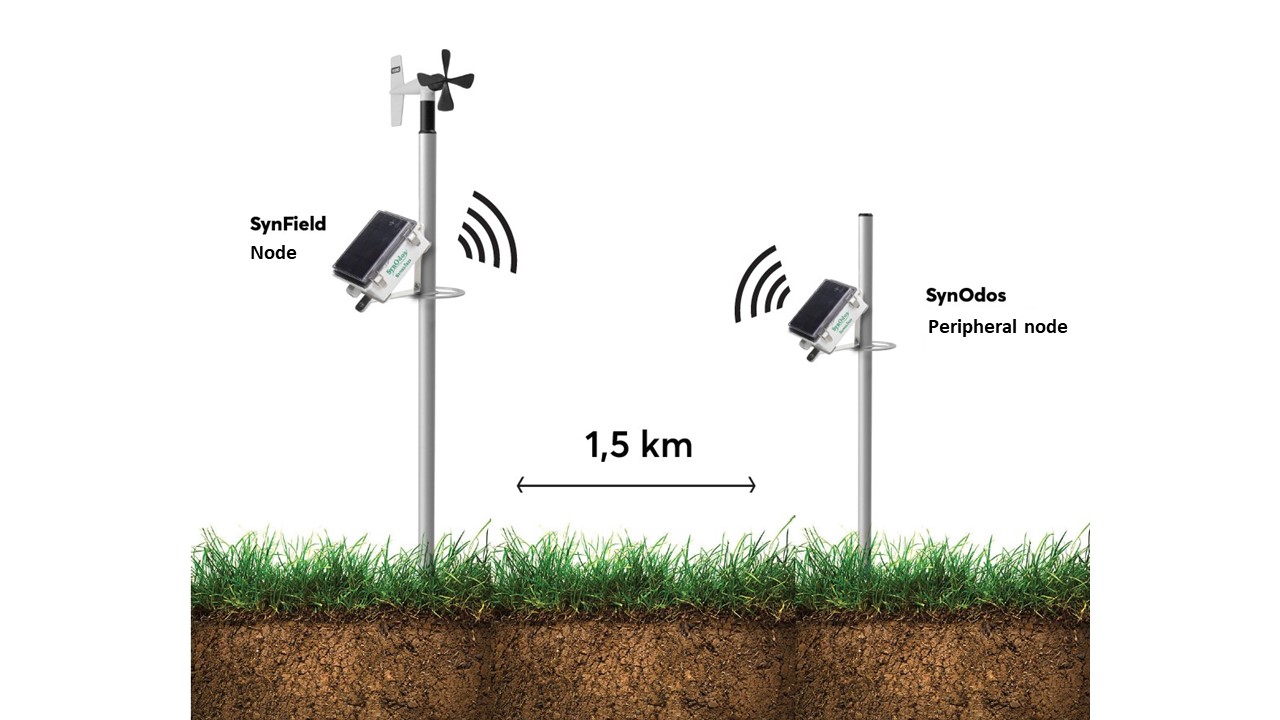

The distance between SynField and SynOdos node can reach up to 1.5 km.

You can set up a network of interconnected devices with SynField nodes that cover the area of large farms wirelessly, efficiently and economically.

Image Pasted at 2022-4-8 15-41

Synodos distance GR

Ideal solution for large farms

Each SynField node can support up to 8 SynOdos devices

SynOdos plaketa ENG new1

Features

  • Ultra-rugged and durable construction
  • Two sensor ports
    • One analog
    • One auto-detect between analog and digital (Unidirectional-serial, DDI)
  • Two latching actuator ports (any type of solenoid control valves, latching relays, etc.)
  • Supports a plethora of off-the-self sensors (vendor independent) and actuators (valves, relays)
  • Out-of-the-box integrated with the SynField Cloud application, for almost real-time data monitoring
  • Almost real-time control of valves, relays and automations using advanced, user-defined rules
  • Up to 1Km LoS distance with built-in antennas. Longer distances available with directional antennas
  • Supports up to eight different wireless channels. Thus, up to eight different SynField/SynOdos groups can co-exist in a geographical area
  • Supports up to eight different wireless addresses. Thus, up to eight devices can be interconnected to a single SynField node
  • Simple configuration of wireless address and channel using on-board DIP-switches
  • Small on-board display for inspecting device status and error messages
  • Built-in solar panel or external charger for all kinds of installations
  • Rechargeable high capacity (4000mAh) battery
  • ESD/lightning protection
Image Pasted at 2022-4-8 11-26 (1)

The integrated SynField ecosystem

The SynOdos peripheral node connects and communicates via SynField node with the SynField online platform.

You are always in control.

Monitor and control your crop remotely, in real time, wherever you are.
