SynField is a comprehensive smart farming and smart irrigation system based on head and peripheral IoT nodes that connect field sensors and automation equipment. Synelixis has developed the SynField X2, SynField X3, SynField X5 head nodes as well as the SynOdos and SynNano peripheral nodes. Each node supports sensors and/or automation systems, enabling real-time monitoring of field conditions and remote control of your agricultural operation.

A typical example includes soil moisture monitoring at one or multiple locations and remotely controlling one or more irrigation (latching) electrovalves to automate irrigation management. The nodes enable the transmission of sensor data to the SynField cloud platform and the delivery of commands from the platform to field automation equipment. Head nodes have direct Internet connectivity and communicate directly with the SynField cloud platform.

Comparison of SynField X2, X3, X5, SynOdos & SynNano Nodes


  SynField X2 SynField X3 SynField X5 SynOdos SynNano
Head node ✓ ✓ ✓ — —
Peripheral node — — — ✓ ✓
Sensor capacity 5 sensors 8 sensors 8 sensors 2 sensors 2 sensors
Automation capacity 4 automations 8 automations 8 automations 2 automations 2 automations
SynOdos connectivity — ✓ ✓ — —
SynNano connectivity — ✓ ✓ — —
SynPump connectivity — ✓ ✓ — —
Weather station connectivity ✓ ✓ ✓ — —
SynAir connectivity — ✓ ✓ — —
SynWater connectivity — ✓ ✓ — —
SynRelay connectivity — ✓ ✓ — —
Direct Cloud connection ✓ ✓ ✓ — —
GPRS / EDGE / NB-IoT connectivity ✓ ✓ ✓ — —
LoRa connectivity
(wireless network)		 — — ✓ ✓ ✓
GPS ✓ ✓ ✓ — —
Firmware upgrade
via Bluetooth		 ✓ ✓ ✓ — ✓
OTA (over the air programing) ✓ ✓ ✓ — —
Solar panel ✓ ✓ ✓ ✓ —
Rechargeable battery ✓ ✓ ✓ ✓ —
Battery capacity 4,000 mAh 4,000 mAh 4,000 mAh 4,000 mAh 19,000 mAh
Ventilation plug ✓ ✓ ✓ ✓ ✓
8 MB built-in memory ✓ ✓ ✓ — —
Weatherproof ✓ ✓ ✓ ✓ ✓
ESD/lightning protection ✓ ✓ ✓ ✓ ✓
Dimensions 24 × 14 × 8 cm 28 × 18 × 10 cm 28 × 18 × 10 cm 24 × 14 × 8 cm 12.8 × 9 × 7 cm
CE mark ✓ ✓ ✓ ✓ ✓

When is a SynOdos or SynNano peripheral node needed?

In large-scale agricultural operations and precision irrigation applications, peripheral nodes extend the SynField network, enabling coverage of larger areas for smart farming and smart irrigation applications. Communication between the head node and the peripheral nodes is wireless (LoRa), with the head node acting as a communication and control gateway that connects the field network to the SynField cloud platform.

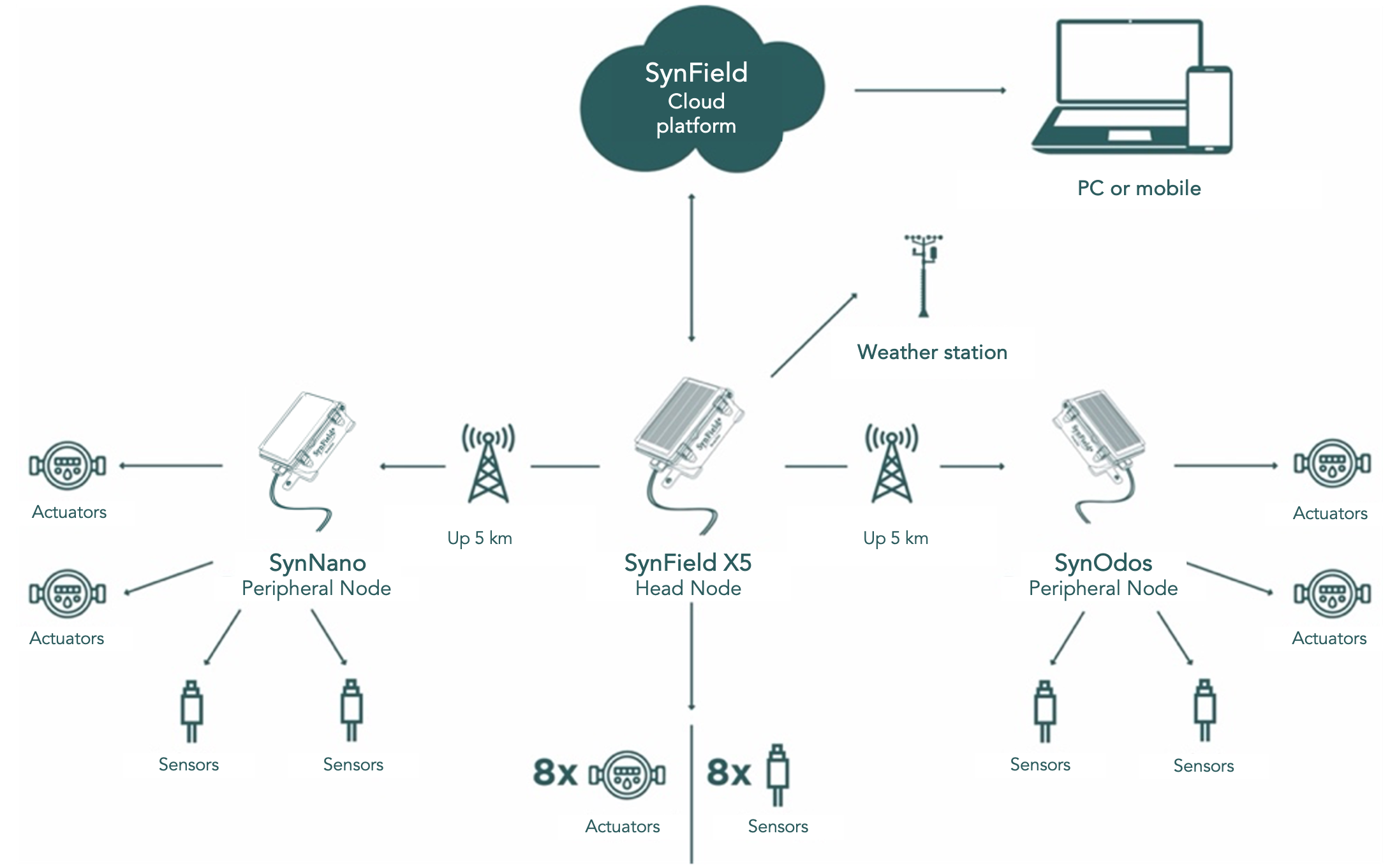

The following image illustrates a typical equipment layout for large-scale applications.

Typical equipment setup for large-scale precision irrigation applications

Contact our team to design the optimal configuration of head and peripheral nodes based on the size, crops, and specific requirements of your installation.
